How to configure MicroSIP for your Gridare SIP extension

Support Portal  »  Knowledgebase  »  Viewing Article

  Print

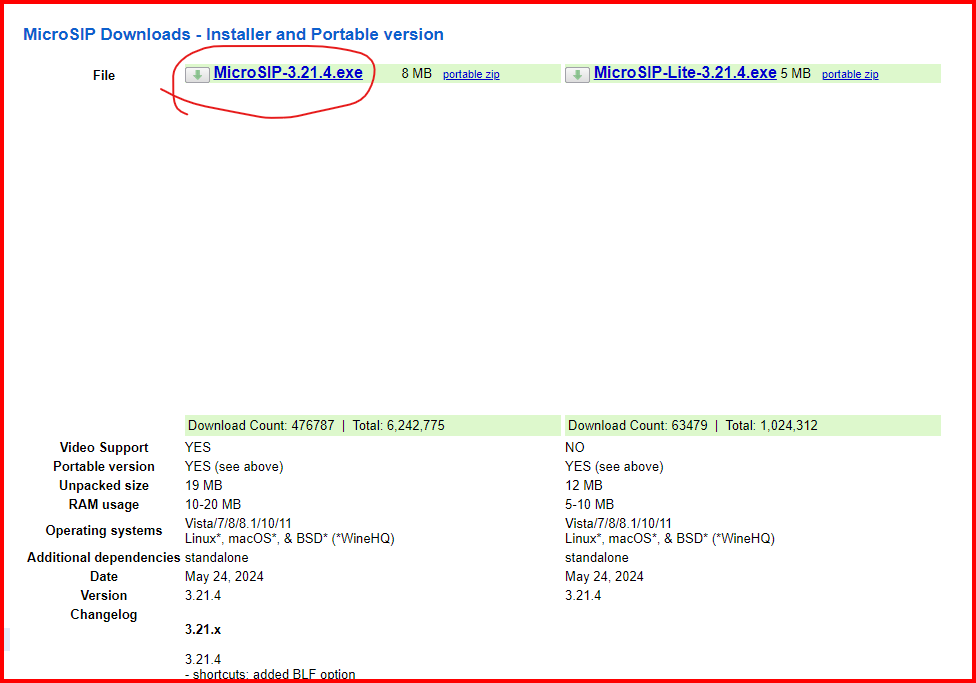

If you haven't already, download MicroSIP from https://www.microsip.org/downloads



c0ba6858a441df2b74911eb9aeb6de469e3b03f79b995c3e043b31805b69afbc200e9720aa5346c2?t=21df71616c2f74929a27a23e2c6f3821

Click on the filename to download the exe. Once, it has completed downloading, double click on the file to start the installation process. Once the installation process is complete, MicroSIP should open.



1e10223da732397199546150f00fa041aeccefc1f055c076aac6208699fd292fff7c29efe3965371?t=09bdee008772cd6f169ef51d34e3a0ae

Click on the little down arrow button. This will bring up a menu.



c0f64ee4497aaac9c6f40638f98ada9d15294a878d1030f644cb9606a4f91d1247c646bec6dd04cf?t=325c77288fd2dcbfb59b82e2a6a4b200

Click on the Add Account Option.



70683c2f8325e3a8a733dfd78e22615735205c900c82170aabef87f0dba8f333291d1641a185a68d?t=856d1ff8a3478cd6ed59abf97cfff46d

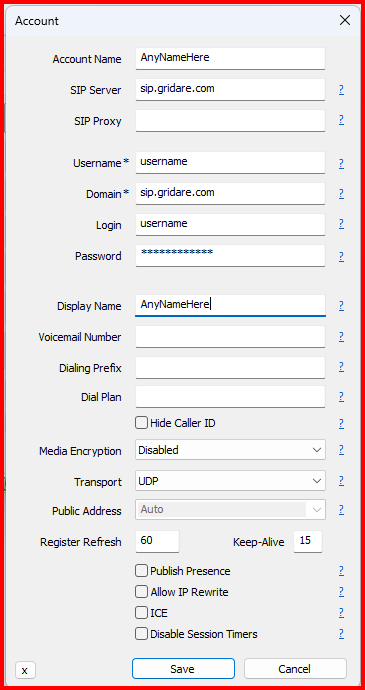

Fill in the fields as show above. Replace username with the actually username Gridare has given you and please enter the Password in the field provided. Please note there are two places where you need to enter the username. Next to Username and Login field. Then click Save.



f0bb05de464d5dbea7aa6152233515d7c8f9954dcca93fab1a12597330701c56987af6d6c9668979?t=eded3363d7233be47ed75513633ddbe0

Then click on the little down arrow again and this time click Settings.



57fd94a0435423059bcc48155fa7f31df0ffb90e22f118d8c88154490aef3b22c5b0e8492113ef0f?t=ab9fe38183ff95c710664d8112bb0c06

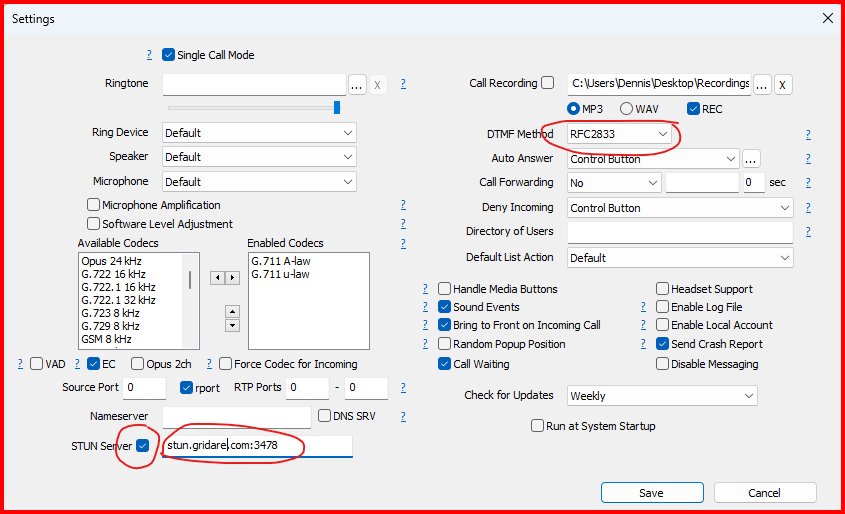

Put a tick next to STUN Server and enter stun.gridare.com:3478 in the field. And then select RFC2833 next to DTMF Method. Then click Save.



Then you're done. Dial 600 for an echo test.
