How to setup Zoiper 5 for your Gridare SIP extension

Support Portal  »  Knowledgebase  »  Viewing Article

  Print

If you haven't yet, download Zoiper 5 from https://www.zoiper.com/en/voip-softphone/download/current



7410240d6fb57702e5512f6a924f188e04654f063f702dc28ed4053342c5f373e887108e090f1cb8?t=c920a73d3aeecdcd9a87234281bf6c3c

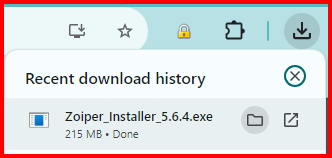

Then after the download is finished, click on the folder icon next to the Zoiper filename. This will open folder where the exe file was downloaded into and double click to execute the installation.



It may ask you if you want this app to make changes to devices, click YES.



3d3ba3caf778856f5e4a23ed67289fc46b115c83c77e9ea3de1fea6157776365f6e570c44e8ade08?t=6b2fe6245f6ea337dd5823d2611434d8

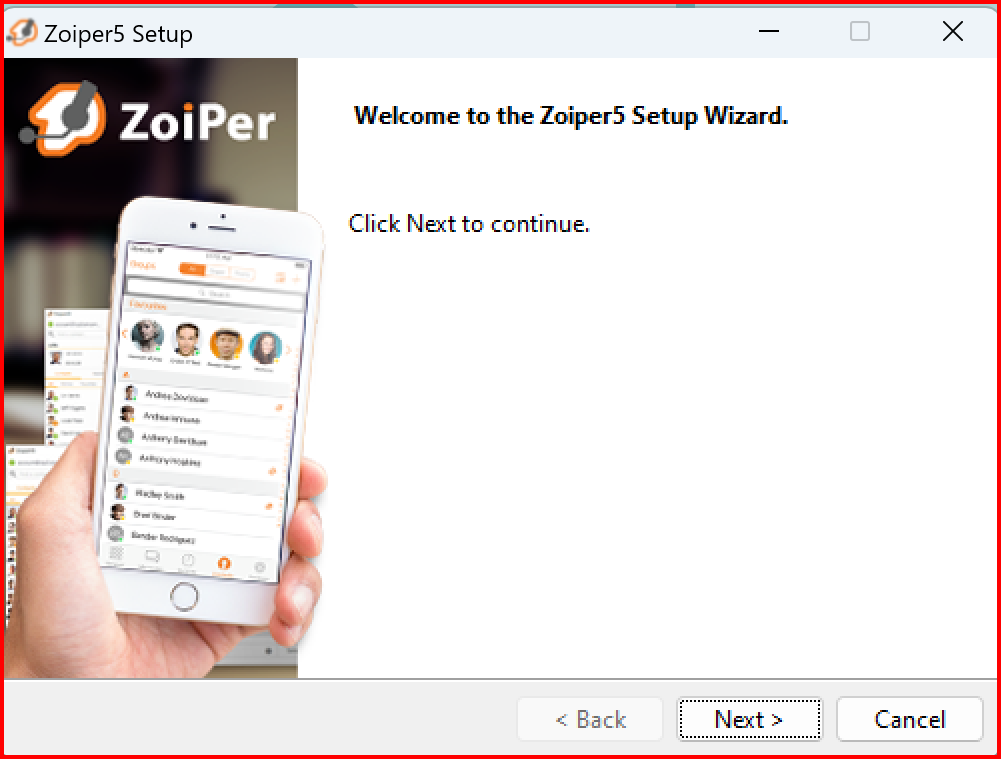

Continue through the installation process



1a8b3b2b872fc05949add267c98fa44210b473fcf99d888593893de438f33a8b846821fa0914f5a8?t=444d984e51e10aa7c29115bfec9c2334

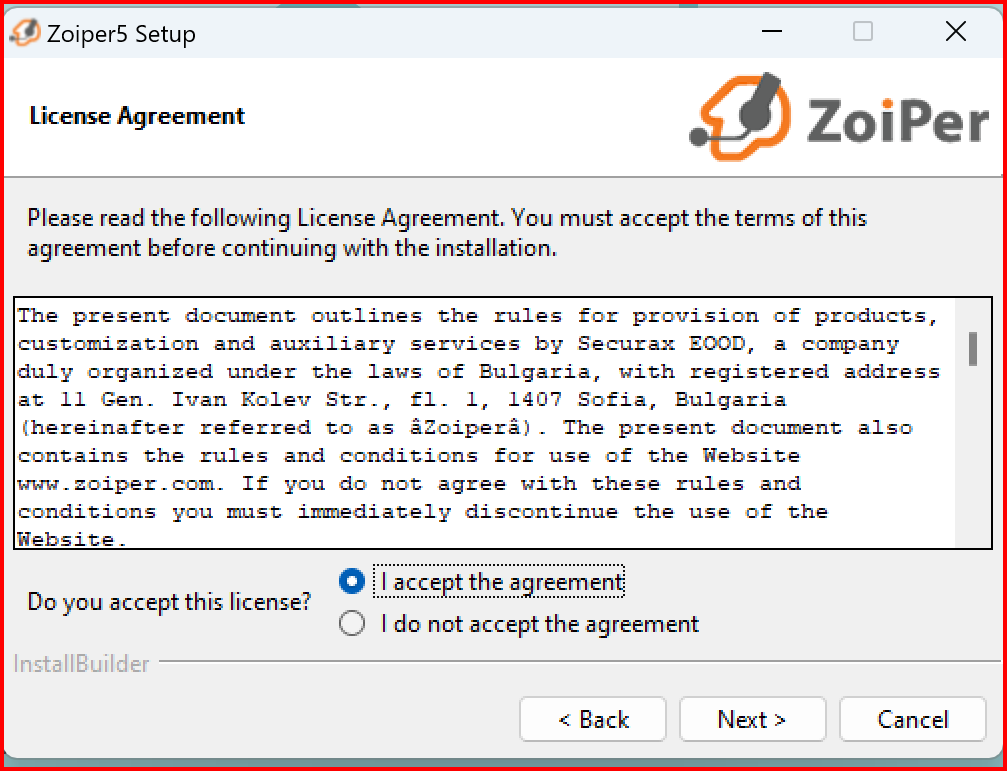

Accepting the agreement



c6a6be89896882458e7f8fd39b38d1402071c5718762b5b99d25aa53630287074195b110c6c401d9?t=21b21b04dc8539eb516880ff8c660cec

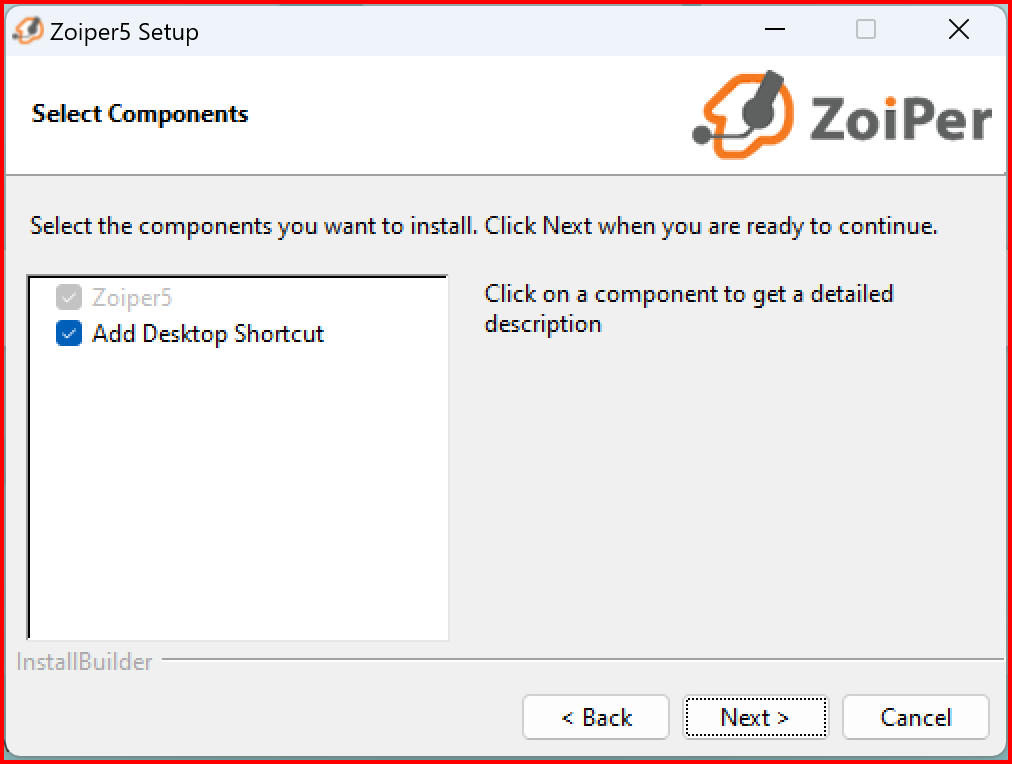

It's your decision whether you want to add a desktop shortcut. Continue by clicking Next.



eb6747392c07d8aad7cc56a01c42339405c1a43d04407512c227bc35ce4adfb4c058730a9e3c9fb6?t=4995e8d135c239dd7a981ecfc00b36e3

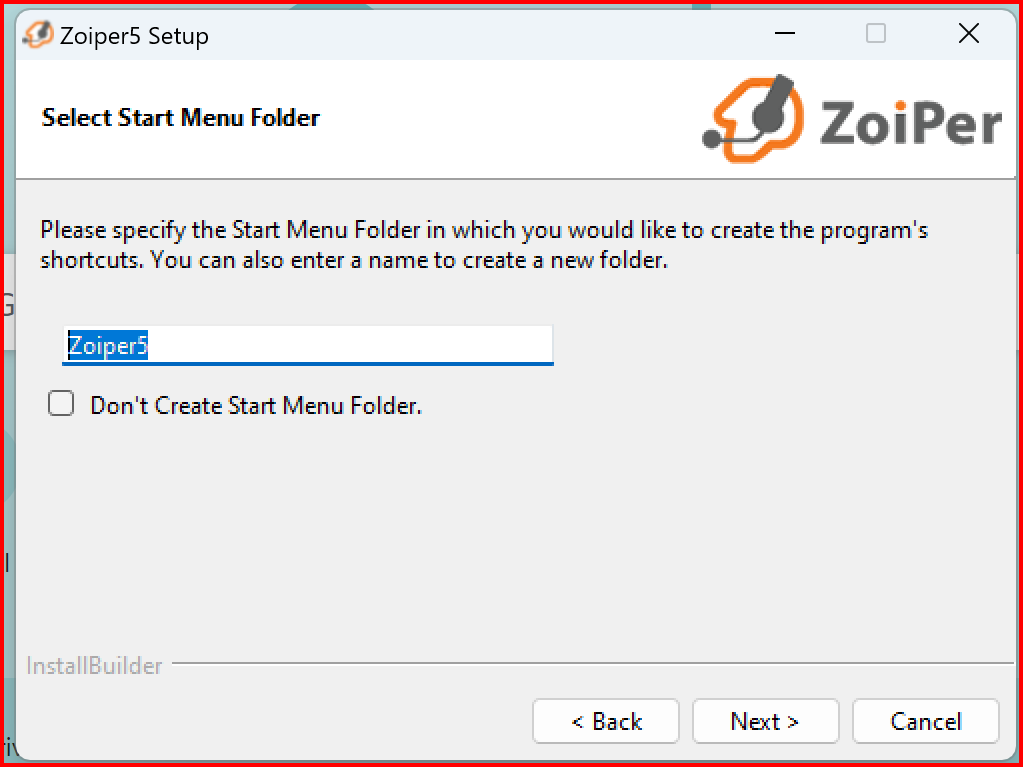

Click Next.



0aa27990a4b9938ce8147ebbf61fe494f8eb07d408622cdec41ff8cb245d8da7ff738a2f16bfab70?t=7b799942f39b378836e18b3b058db4f8

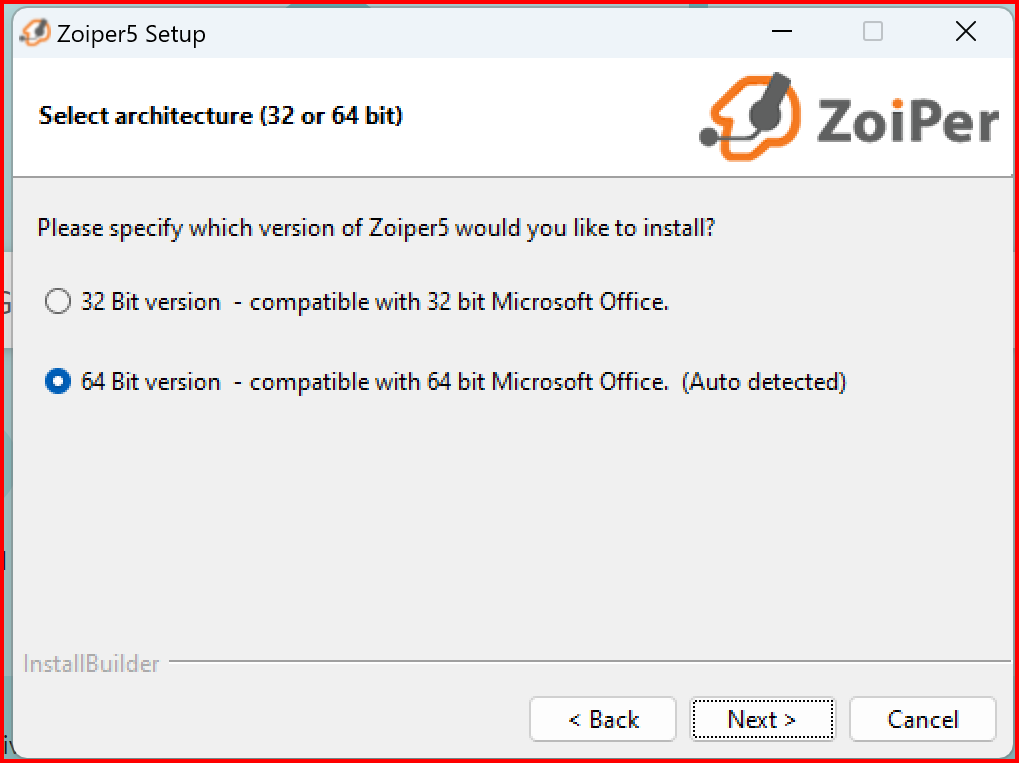

Select your computers CPU structure, 32 Bit or 64 Bit.



4b142550d57b119e33d366953b281becaa3d45ee61943af31d57f7dcf4d1af213ca89d86763fd5b5?t=3a39359155759a0ece8488cff1d77556

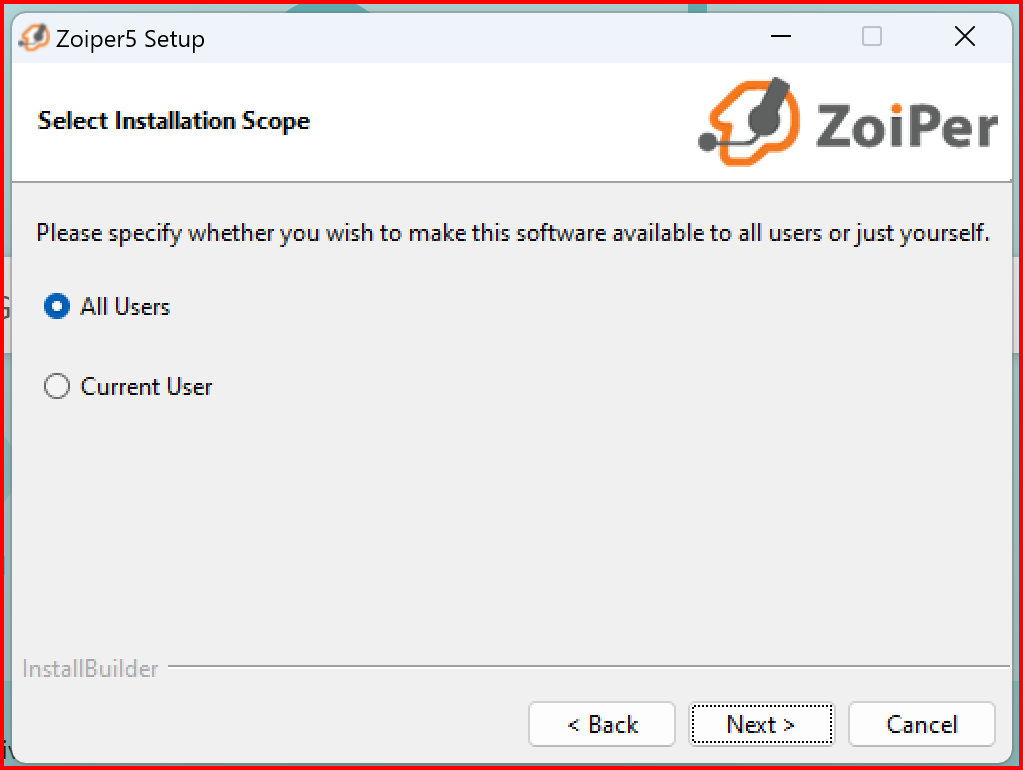

Make this app accessible to all users.



a5e709e11442e33cc2f8df32e2f75eeefa697e1fa7d4f204a3be5e8a38ce25c9248298e04bfeca02?t=136450274fa6969feb299967756fab5f

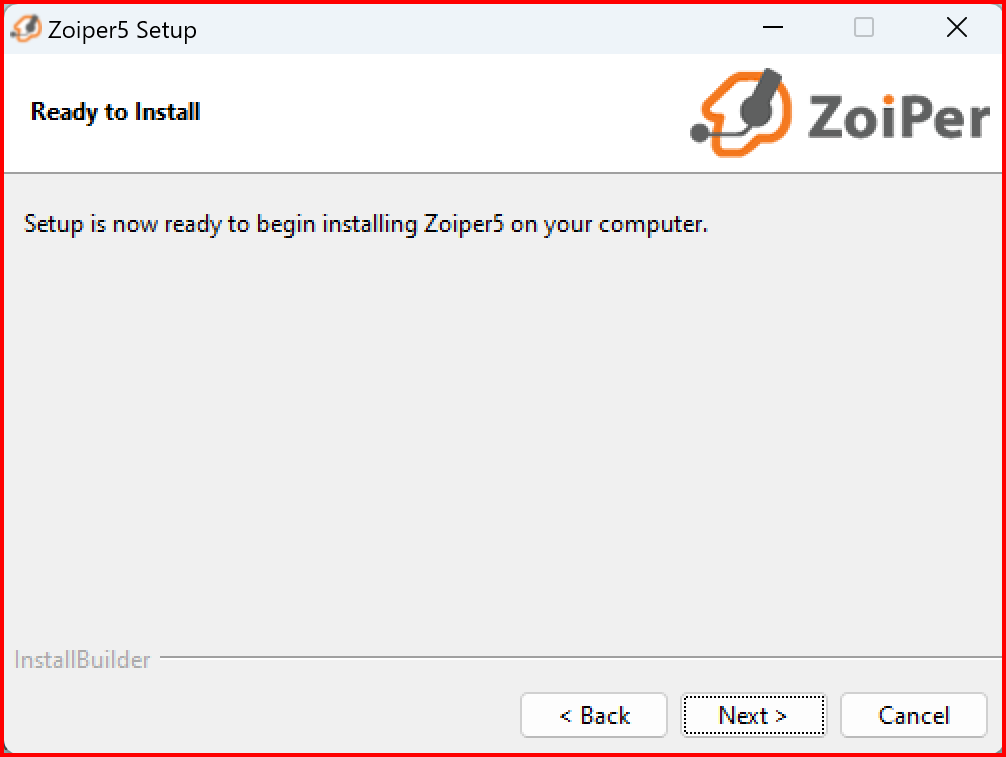

Then you're ready to install.



f54a661b62b7d7fd4f822da54db91d0a2cc784edf3b3d7525200d765c40bedf16c702f5a723311df?t=532e90a4047dca0290299829eae4a571

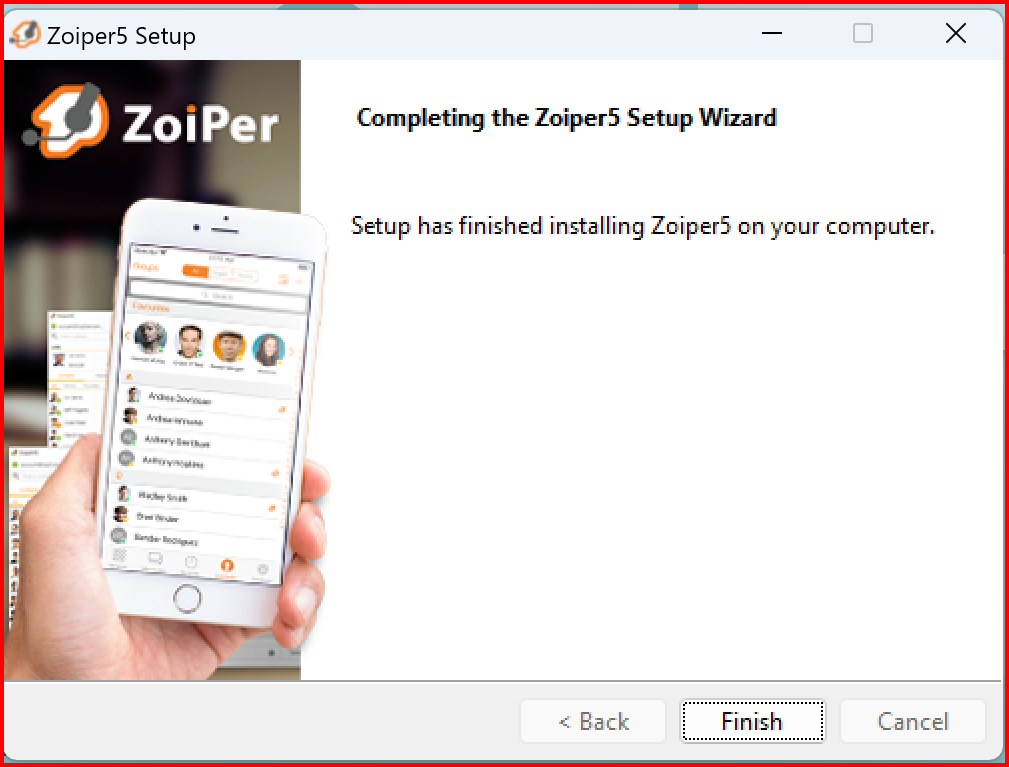

Click Finish. Then open the Zoiper.



a209660e52e41e0eda9567740ea51bdcd7b8c497890ea08f7d1da75843a691f6b7123bd23f1b6afc?t=f98471bd57660f4ee08b95d81b204a0b

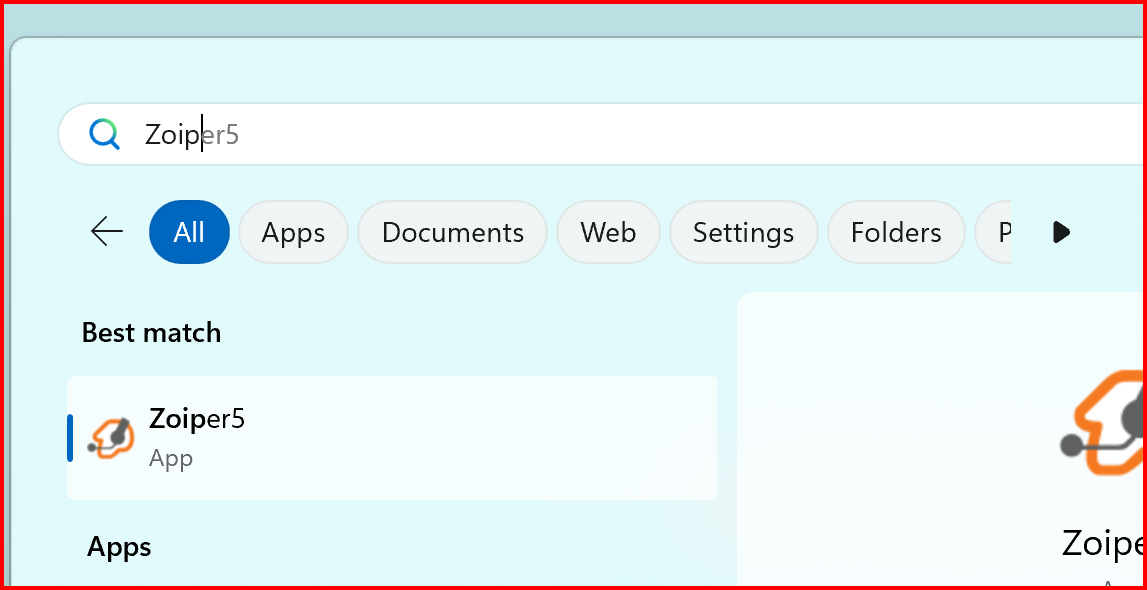

Search in the search field for Zoiper5 and click on the app to open it.



09f400f195fa961792c77b24f4ec026da8ea000d480d33f53efc4e9d2c9870031681ffa098eb3c86?t=db379f7afb7b32a40e20e11399606791

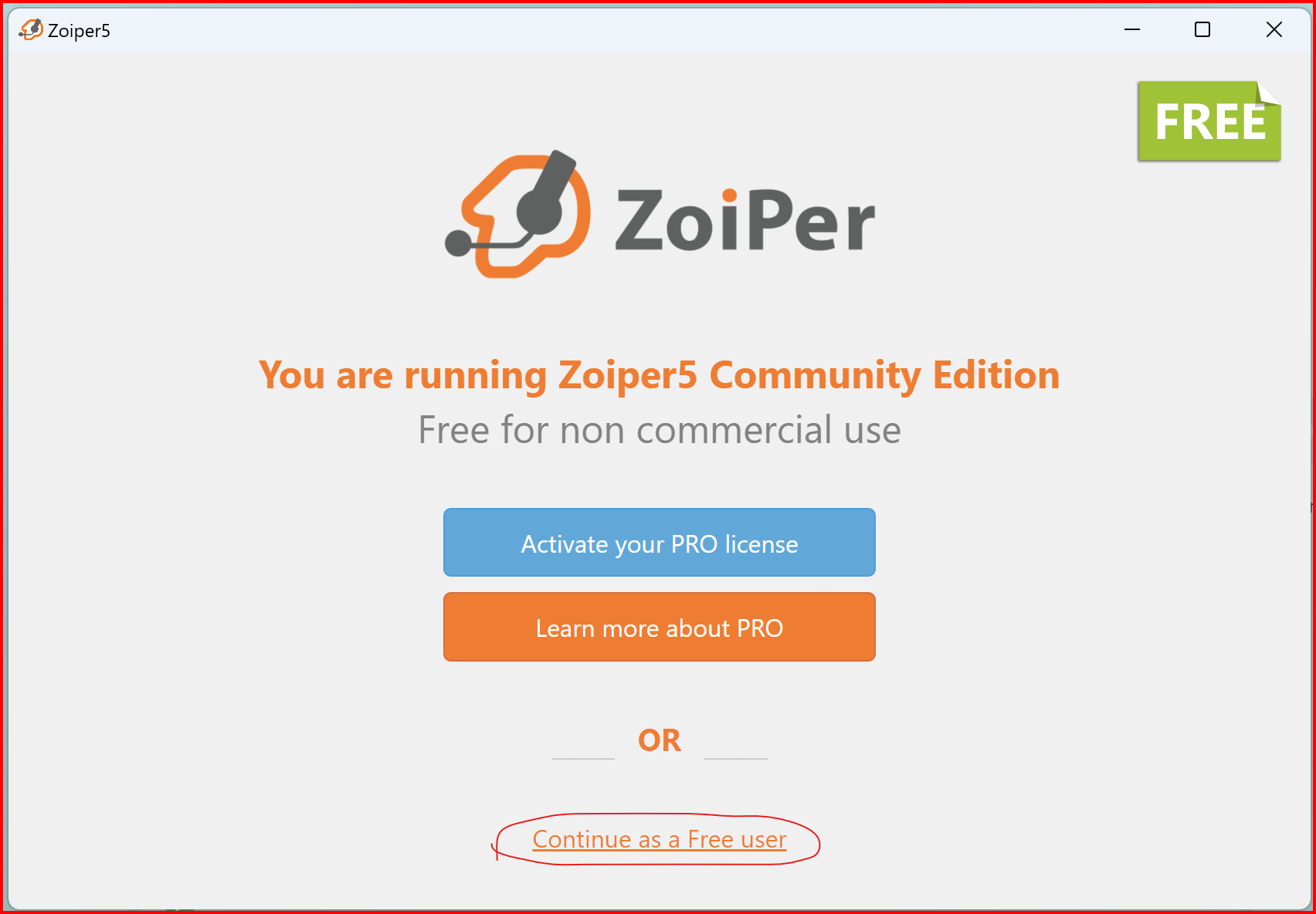

If you don't have a license, you can click on "Continue as a Free user".



de3724bb8e272b03c0db815d3044865fc5cb8df2695bbae5941603fce1c4dedd6e0cf89102ecee96?t=c3d949029f7bf355270d5106f5637218

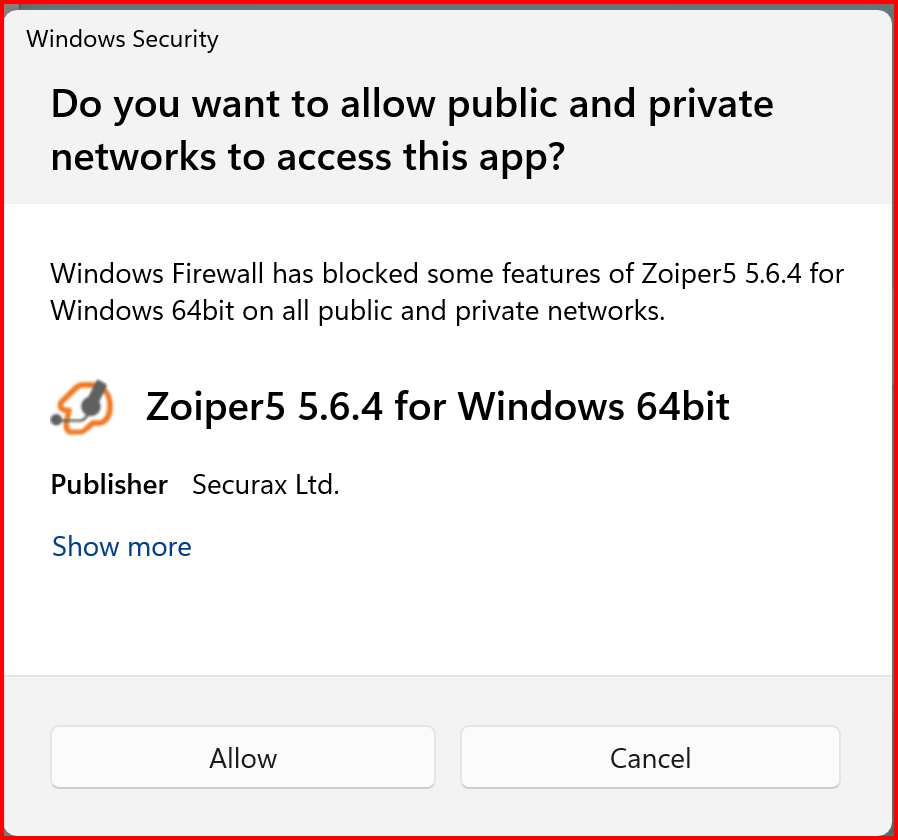

If you get this, click on Allow.



bd2711e601eda588707e630c8dec4544f1487c4e1d5b6fc995d2e9bb7ece550a42e07fe1eb45a53e?t=91d638b3c2ed55ea8172c1ae037734fc

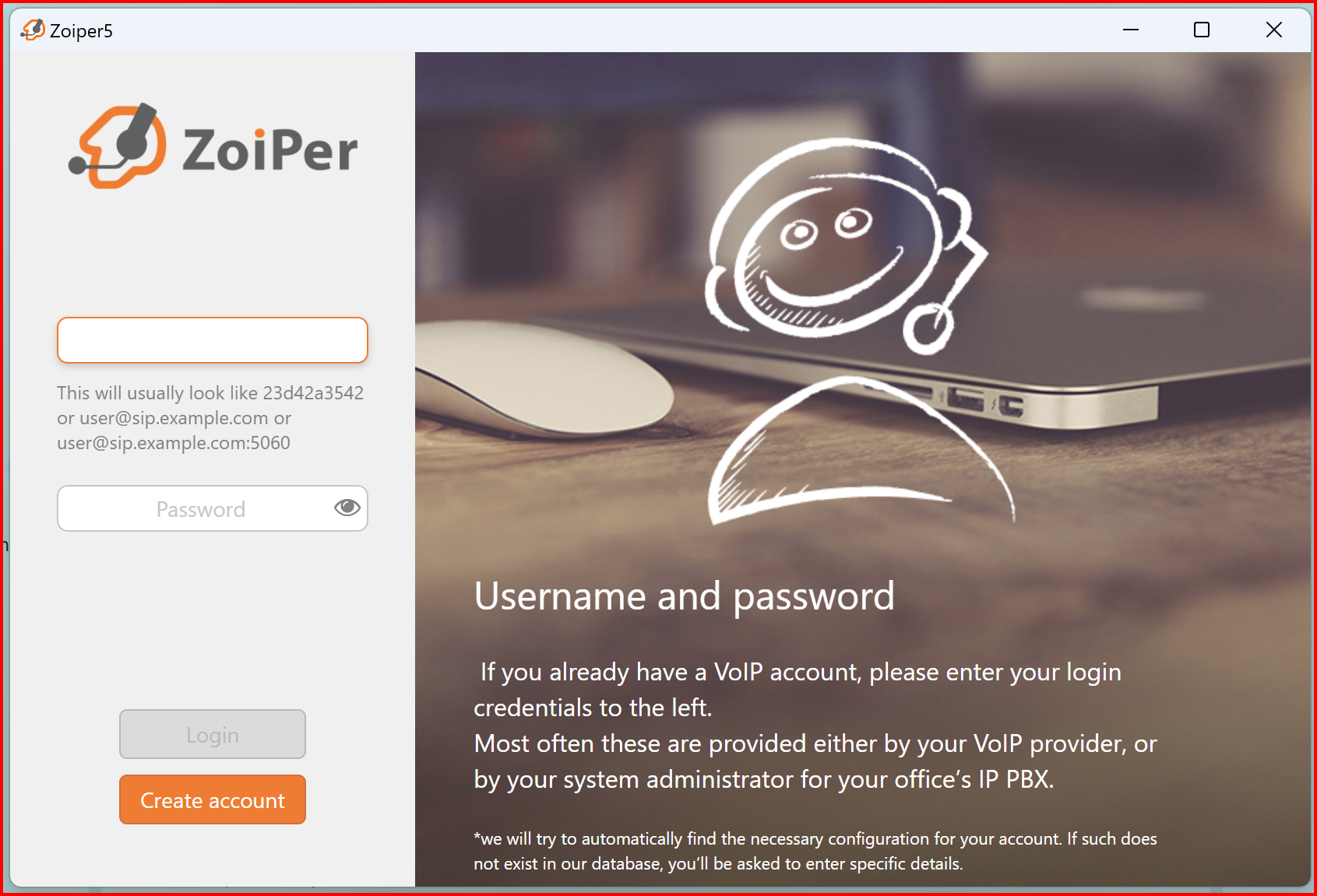

In the username field, type your in the following format username and then enter your password. Click Login.



cab29112f62fe40116009b77b9ebff1f628b1d0fb8eca9907bda3b43fd22a04e3c4b7369a7197271?t=d0db9a9068501236ae3795c560cbb002

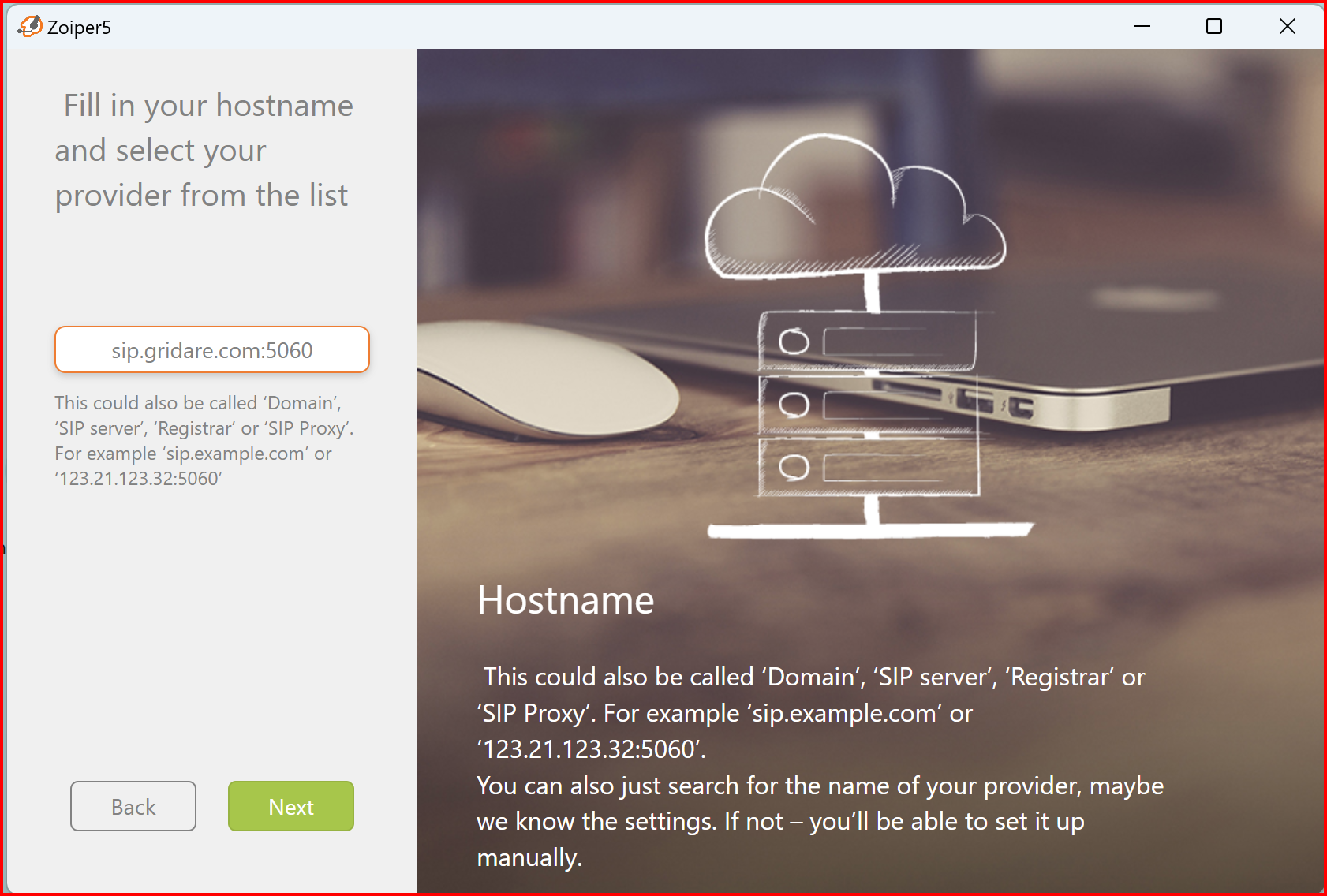

Then enter sip.gridare.com:5060 and click Next.



19071abbbb1a6cf36c2f349b26803749665d1f554b2a2ad5bdd5d669a1f690bebf2c653ca9c97e3a?t=bcde41b283f0de05b21b7da8d78e69d5

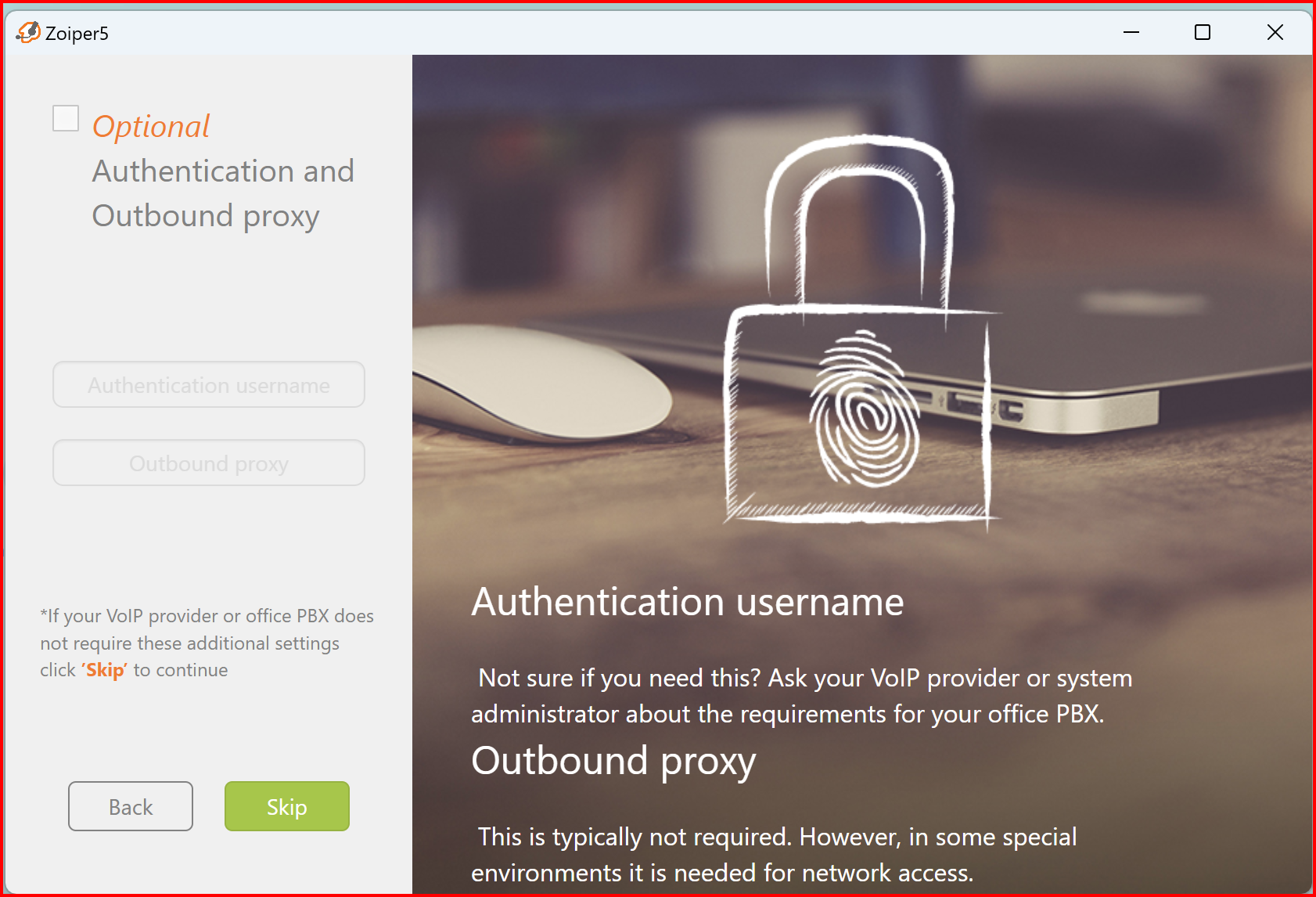

Skip this section



9337fa48ce3a61fec2660635159571adc6e6323cbd31067b71939bf85191e1bc95897510dd50132e?t=0b1a0bffdcf8b59c5c68a2a1fc3ca568

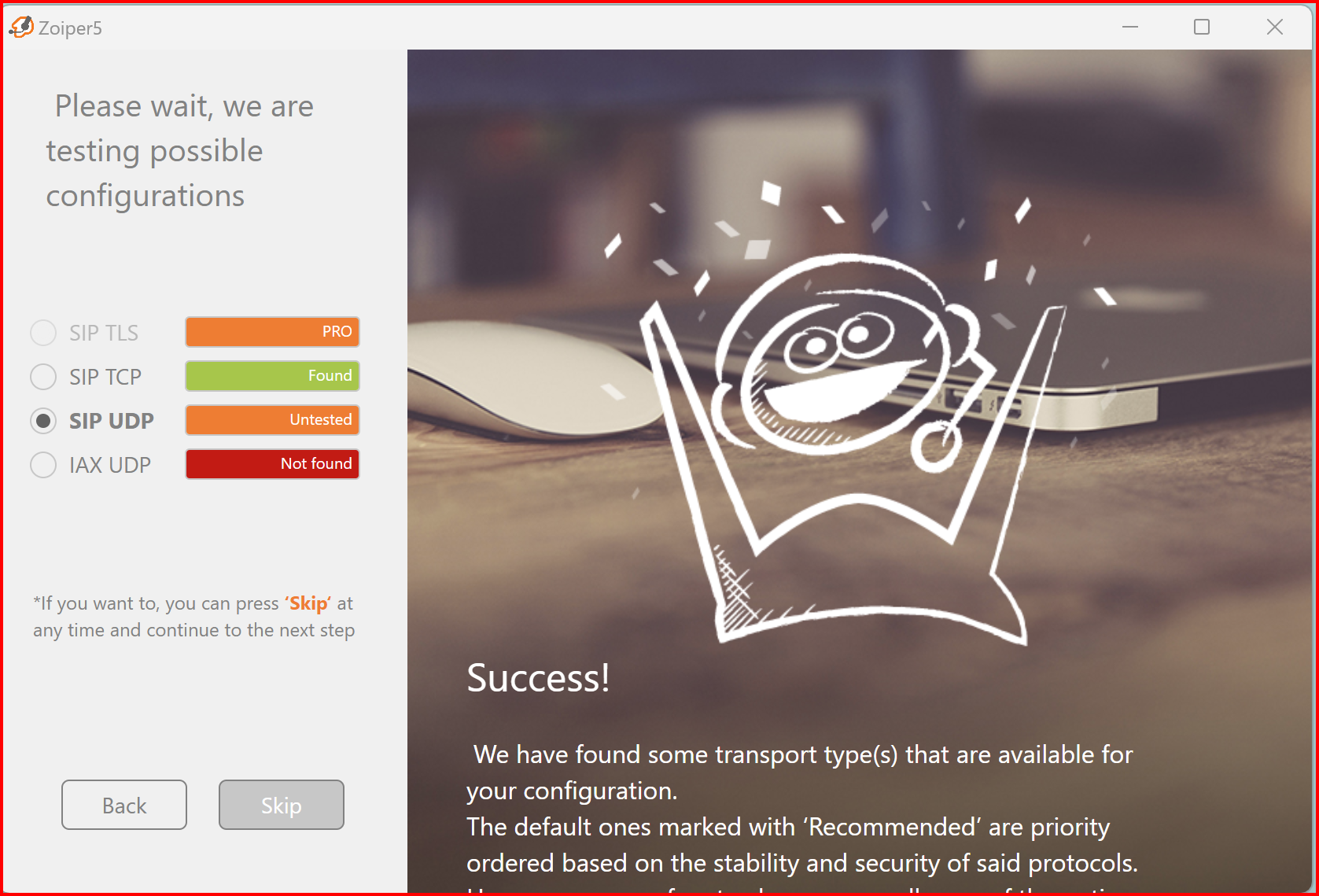

Wait until testing is done and then select SIP UDP and then click Skip.



35e55fc204d33da75ec686d5037db0e22f37ea63ffb73a57ff2b5d953aa2e0a0be9b46751cf83724?t=43ef1106fdd7f2d8677b405bac0b518a

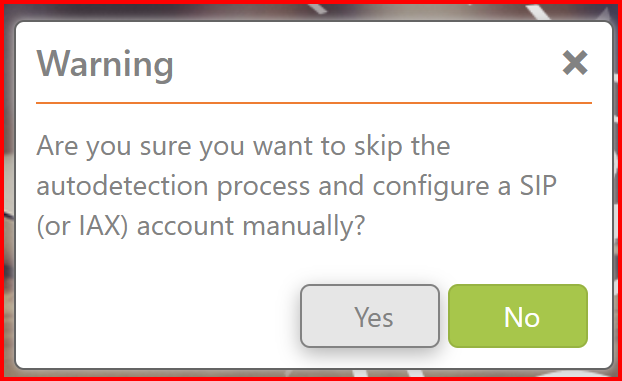

Click YES.



c92789274f8c65315b17dfdf66a08cc3e989f2a9ce20772f5edbde7d75e310d96278314e33e6062b?t=4fd4040cf0948dc987bfb641b35e4ece

Enter your username and make sure you have SIP selected, then click on Create Account.



7141f9777b674c85cb06b4abc0aa7f5415b1eac90827098a139acfbdaf3189d4ca6dc18692f20bfd?t=d1238f29a85a2c66c7e96db63577350f

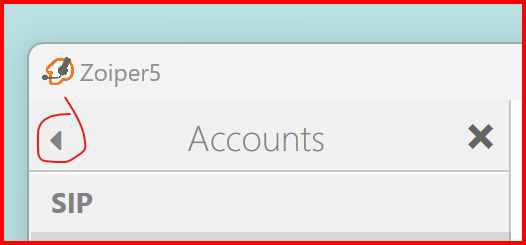

Then you're done, just click on the X.



To test. please dial 600 for echo test.
